Metal Rollers

3.50" Dia. x .083" Wall Thickness - 5/8" Hex Shaft

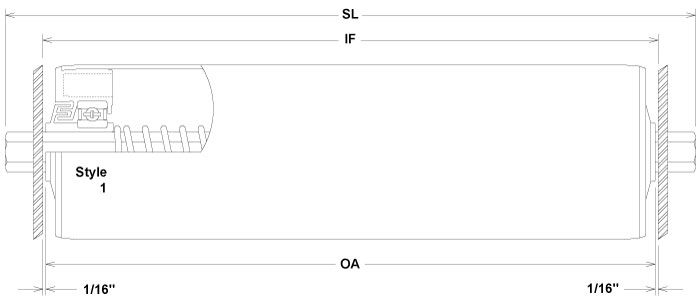

Diagram of Roller

Bearings:

Type:

ABEC-1 Precision

Part #

Inquire

Style / Description:

1 / Conductive plastic - Double labyrinth seal construction

Tube:

Materials:

Carbon Steel
Stainless Steel

Part #

C71
S71

Style / Description:

3.50" x .120" Wall Carbon Steel
3.50" x .120" Wall 304 Stainless Steel



Drive Options:
Cover Options:
Finish Options:

Grooves, Sprockets
Urethane Sleeves
Polished, Electropolished, Passivated, Zinc Plated

Shaft:

Materials:

Carbon Steel
Stainless Steel

Part #

C88
Inquire

Style / Description:

5/8" Hex Carbon Steel Shaft
5/8" Hex 304 Stainless Steel Shaft



Standard Extensions:
Standard Springs:
Options:

3/4"
Single spring loaded with shaft depressing to bearing hub
Fixed shaft, through shaft, holes, drilled and tapped, dual
spring loaded, Zinc Plated

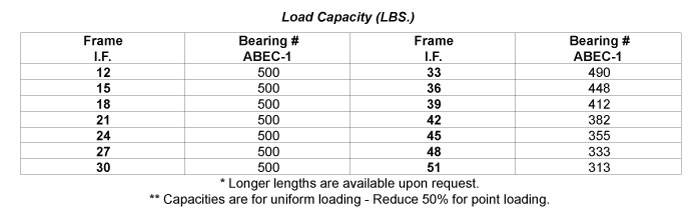

Load Capacity Table

Contact Customer Service For A Detailed Catalog
Of Ralphs-Pugh Metal Rollers At 1-800-486-0021
