Plastic Rollers

1.18" Dia. x .075" Wall Thickness - 3/16" Round Shaft

Diagram of Roller

Bearings:

Type:

Bushing Style, UHMW
Bushing Style, Acetal
Bushing Style, Ultra

Part #

Inquire
5D1
Inquire

Style / Description:

5 / UHMW Plastic
5 / Acetal Plastic
5 / "Ultra" Acetal Plastic

Tube:

Materials:

PVC

Part #

D17

Style / Description:

1.18" x .075" Wall Gray PVC

Shaft:

Materials:

Carbon Steel

Part #

C08

Style / Description:

3/16" Round Carbon Steel Shaft



Standard Extensions:
Standard Springs:
Options:

9/16"
Dual spring loaded with shaft depressing to bearing hub
Fixed shaft, through shaft, D-shaft, threaded

Note:

Bushing style rollers are for intermittent use only.
Not recommended for powered systems.

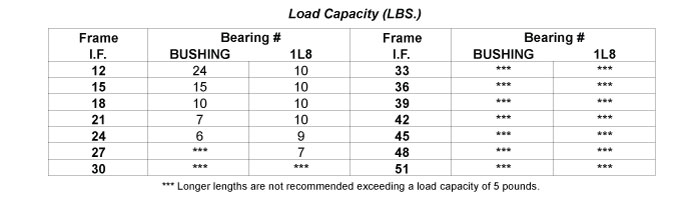

Load Capacity Table

Contact Customer Service for a detailed catalog
of Ralphs-Pugh plastic rollers, 1-800-486-0021
