Metal Rollers

2.00" Dia. x .065" Wall Thickness - 7/16" Hex Shaft

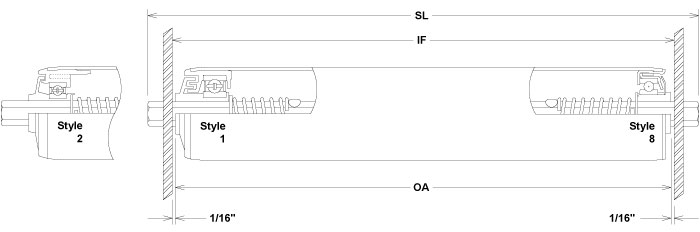

Diagram of Roller

Bearings:

Type:

ABEC-1 Precision
ABEC-1 Precision, SS
Steel, Commercial
Stainless Steel
ABEC-1 Precision
ABEC-1 Precision, SS
ABEC-1 Precision

Part #

3E0
3E0SS
2U1
2U2
3W6
3W6SS
33W10

Style / Description:

1 / Conductive plastic - Double labyrinth seal construction
1 / Conductive plastic - Double labyrinth seal construction
1 / Conductive plastic - Double labyrinth seal construction
1 / Conductive plastic - Double labyrinth seal construction
2 / Conductive plastic - Single labyrinth seal construction
2 / Conductive plastic - Single labyrinth seal construction
8 / Stamped Zinc Plated Metal Housing

Tube:

Materials:

Carbon Steel
Galvanized Steel
Stainless Steel

Part #

C49
G49
S49

Style / Description:

2.00" x .065 Wall Carbon Steel
2.00" x .065 Wall 304 Stainless Steel
2.00" x .065 Wall Galvanized Steel



Drive Options:
Cover Options:
Finish Options:

Grooves, Sprockets, One Way Clutch
Urethane Sleeves, Urethane Tapered Rollers, PVC
Polished, Electropolished, Passivated, Zinc Plated

Shaft:

Materials:

Carbon Steel
Stainless Steel
Aluminum
** Plastic Adapters
*** Urethane Adapters
** Plastic Adapters
*** Urethane Adapters

Part #

C68
S70
A66
C62
UC62
S62
US62

Style / Description:

7/16" Hex Carbon Steel Shaft
7/16" Hex 304 Stainless Steel Shaft
7/16" Hex Aluminum Shaft
7/16" Hex External Adapter with 5/16" Hex Internal Carbon Steel Shaft
7/16" Hex External Adapter with 5/16" Hex Internal Carbon Steel Shaft
7/16" Hex External Adapter with 5/16" Hex Internal 304 Stainless Steel Shaft
7/16" Hex External Adapter with 5/16" Hex Internal 304 Stainless Steel Shaft



Standard Extensions:
Standard Springs:
Options:

1/2" - 5/8" with adapters, 9/16" all others
Dual spring loaded with shaft depressing to bearing hub
Fixed shaft, through shaft, holes, drilled and tapped, zinc plated



** Max 50 Lbs. Per Roller   *** Max 100 lbs. per roller

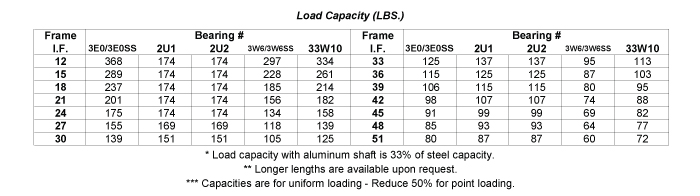

Load Capacity Table

Contact Customer Service for a detailed catalog
of Ralphs-Pugh products, 1-800-486-0021
