V-Guide Rollers
Ralphs-Pugh Pressure Roller Upgrade - For Live Roller Belt (LRB) Systems
V-Guide Rollers Built for Longer Life and Better Tracking
-
Exact Drop-In OEM Compatibility
-
2x - 3x Longer Life for Accumulation Shoe Assemblies
(Typical field results vary by application)
Reduce belt wear, minimize downtime, and extend system performance with precision-engineered rollers designed for demanding applications.

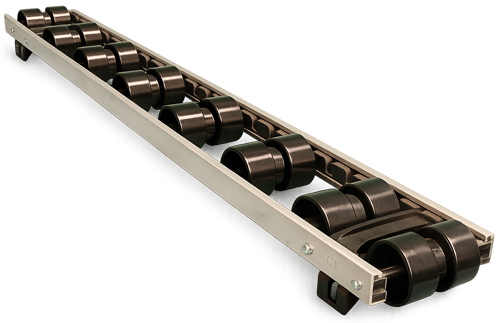

The pressure shoe assembly that these rollers are used in can be quite abusive. Using light duty OEM molded parts not suitable for the higher level of abuse this system administers, the whole frame assembly can fall apart rather quickly once an OEM roller fails under stress, as the belt will fail with the roller and will in turn destroy the assembly.

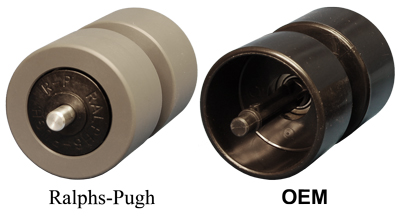

Ralphs-Pugh's V-Guide replacement roller is stark in it's differences versus the OEM roller.
- Precision-machined solid PVC body versus plastic molded body
- Precision-machined aluminum shaft versus plastic molded shaft
- (2) ABEC-1 precision bearings versus (1) ABEC-1 precision bearing
- Protected bearing compartment versus open bearing compartment
Contact Customer Service for a detailed catalog
of Ralphs-Pugh products, 1-800-486-0021
