Plastic Rollers

1.31" Dia. x .140" Wall Thickness - 1/4" Round Shaft

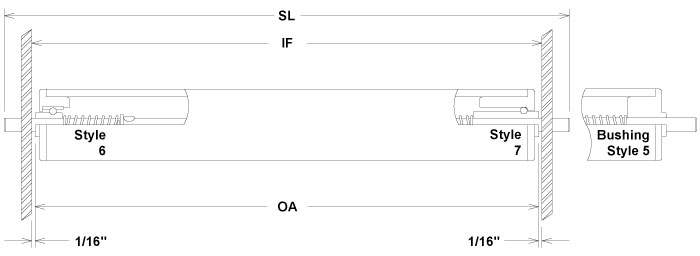

Diagram of Roller

Bearings:

Type:

Stainless Steel
Steel, Commercial
Stainless Steel
Bushing Style, Acetal
Bushing Style, Ultra
ABEC-1 Precision
ABEC-1 Precision, SS

Part #

1L2
2L2
2P1
Inquire
5G4
3N8
3N8SS

Style / Description:

7 / Stainless steel balls in a plastic housing and raceway
6 / Plastic Housing - No Seals
6 / Plastic Housing - No Seals
5 / Acetal Plastic
5 / "Ultra" Acetal Plastic
6 / Conductive Plastic Housing
6 / Conductive Plastic Housing

Tube:

Materials:

PVC

Part #

H20

Style / Description:

1.31" x .140" Wall "Hi-Impact" White PVC

Shaft:

Materials:

Carbon Steel
Stainless Steel
Aluminum

Part #

C10
S10
A10

Style / Description:

1/4" Round Carbon Steel Shaft
1/4" Round 304 Stainless Steel Shaft
1/4" Round Aluminum Shaft



Standard Extensions:
Standard Springs:
Options:

9/16"
Dual spring loaded with shaft depressing to bearing hub
Fixed shaft, through shaft, D-shaft, threaded

Note:

1L2 and bushing style bearings are for intermittent use only.
Not recommended for powered systems.

Load Capacity Table

Contact Customer Service for a detailed catalog
of Ralphs-Pugh plastic rollers, 1-800-486-0021
