Plastic Rollers

1.31" Dia. x .140" Wall Thickness - 5/16" Hex Shaft

Bearings:

Type:

ABEC-1 Precision
Stainless Steel
Steel, Commercial

Part #

3M6
1L4
2L4

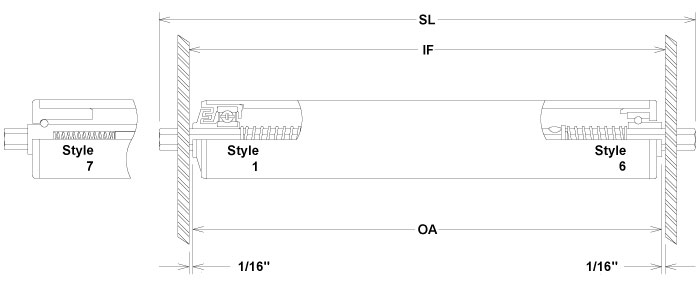

Style / Description:

1 / Conductive plastic - Double labyrinth seal construction
7 / Stainless steel balls in a plastic housing and raceway
6 / Plastic Housing - No Seals

Tube:

Materials:

PVC

Part #

H20

Style / Description:

1.31" x .140" Wall "Hi-Impact" White PVC

Shaft:

Materials:

Carbon Steel
Stainless Steel
Acetal Adapters
Acetal Adapters

Part #

C14
S14
C12
S12

Style / Description:

5/16" Hex Carbon Steel Shaft
5/16" Hex 304 Stainless Steel Shaft
5/16" Hex External Adapter with 1/4" Round Internal Carbon Steel Shaft
5/16" Hex External Adapter with 1/4" Round Internal Carbon Steel Shaft

Standard Extensions:
Standard Springs:
Options:

7/16" with C12 and S12, 9/16" with C14 and S14
Dual spring loaded with shaft depressing to bearing hub
Fixed shaft, through shaft, holes, pins or rings
