Plastic Rollers

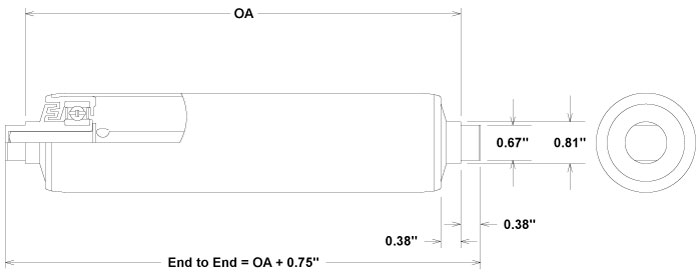

1.90" Dia. x .112" Wall Thickness - .67" Plastic Flat Caps
Bearings:
Type:
Steel, Commercial
Stainless Steel
ABEC-1 Precision
Part #
2E4
2E5
3A5
Style / Description:
1 / Plastic housing with double labyrinth seal construction
1 / Plastic housing with double labyrinth seal construction
1 / Plastic housing with double labyrinth seal construction
Tube:
Materials:
PVC
Drive options
Part #
H41
Grooves
Style / Description:
1.90" x .112" Wall "Hi-Impact" White PVC
Shaft:
Materials:
** Acetal Flat Caps
** Acetal Flat Caps
Part #
C64
S64
Style / Description:
Uses a 7/16" hex carbon steel internal shaft
Uses a 7/16" hex stainless steel internal shaft
Standard Extensions:
Standard Springs:
Contact Customer Service for a detailed catalog
of Ralphs-Pugh plastic rollers, 1-800-486-0021
